  • G4 Corrugated Board Converting Machine (G4 High Speed Printer Slotter Die Cutter)

G4 Corrugated Board Converting Machine

(G4 High Speed Printer Slotter Die Cutter)

Components

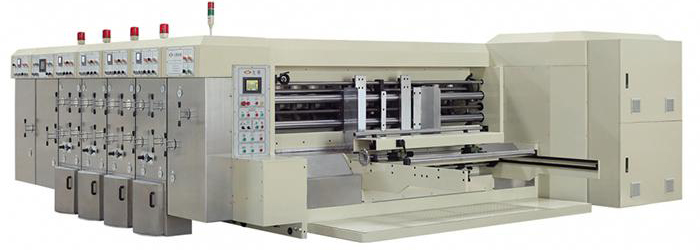

G4 Corrugated Board Converting Machine is composed by 4 parts, which is the sheet feeder, the corrguated box printer, the corrguated box slotter and the die cutter.

The product can complete multi-color cardboard printing, cutting, pressure lines, trimming, slotting, cutting angle, die cutting, drilling and other multi-channel processes in one time.

G5 Corrugated Board Converting Machine
Workflow of the corrugated box making machine

The sheet feeder uses the servo drive and the feed roller rotates to transfer the cardboard to the corrguated box printer for printing. After the cardboard reaches the corrguated box printer, the net roller and the rubber roller transfer the ink to the printing plate on the printing roller and the cardboard is transferred stably by the sheet feed shaft, then the pattern is accurately printed on the cardboard. Afterwards, the cardboard is transfered to the slotter for slotting or the die cutter for die cutting to meet the customers's requirements in the shape of the carton.

    1. Sheet Feeder
    2. Sheet Feeder The sheet feeder is equipped with automatic dust removal mechanism, which can effectively remove the impurities on the surface of cardboard.
    1. Corrugated Box Printer
    2. Corrugated Box Printer The corrugated box printer adopts quick printing plate mounting system, which is easy to assemble and disassemble the printing plate.
    1. Corrugated Box Slotter
    2. Corrugated Box Slotter The slotter is equipped with a flexible angle cutter and there is no need to adjust no matter the cardboard is three or five or seven layers.
    1. Die Cutter
    2. Die Cutter The material of the die cutting roller is high quality steel, whose wall thickness is 30mm and uses balance correction, and the surface is hard chrome plated.
Features
  • The corrugated box making machine, the fan and vacuum use variable frequency control to control the air volume, which can be adjusted according to different speed.
  • All units can be reset to zero.
  • All units are controlled by computer and have the memory function, which can remember 999 orders.
  • The corrugated box making machine has ink lacking alarming device and when it lacks ink it will stop feeding, which can prevent damage to the machine due to the lack of ink while high speed running.
  • The gap between up and low wheel shafts is adjusted by self-locking and all the units adopt flat oil separation device.
  • Fault alarming accurately and high strength of the safe production.
Parameters
Model JF0820 JF0920 JF1224 JF1424 JF1228 JF1428 JF1628 JF1632 JF2236
Max Speed (pcs/min) 250 250 200 200 180 160 160 150 110
Max feeding size (mm) 800×2050 900×2100 1200×2500 1400×2500 1200×2900 1400×2900 1600×2900 1600×3300 2200×3700
Min feeding size (mm) 260×600 280×600 370×700 370×700 370×700 390×700 450×850 450×850 650×800
skip feeding size (mm) 1200×2050 1200×2050 1600×2500 1600×2500 1600×2900 1600×2950 2000×2850 2000×3200 2400×3200
Max print size (mm) 750×2000 850×2000 1150×2400 1350×2400 1150×2800 1350×2800 1550×2800 1550×3200 2150×3600
Min slotting gap (reverse knife) 230×70×230×70 230×70×230×70 240×70×240×70 250×90×250×90 240×70×240×70 250×90×250×90 280×120×280×120 280×120×280×120 280×120×280×120
Printing plate thickness (mm) 7.2
Board thickness 1.5-12

Jiufeng company as a full experienced corrugated carton making equipment manufacturer, we provide complete corrugated cardboard box machine line, including corrugated cardboard printer, cardboard slotter cutter, cardboard folder and gluer. The corrugated cardboard machines we made with plenty of experience since 1996, we are sure to offer customers high quality corrugated carton equipment and corrugated cardboard solutions for customers.
