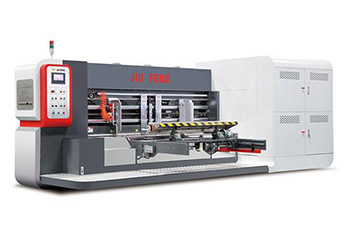

1. Sheet Feeder
    2. Sheet Feeder The sheet feeder adopts four shaft lead edge feeding system to feed the carton, which makes the corrugated box making machine run high-speed steadily.
    1. Flexo Printer
    2. Flexo Printer This is the second part of HIDELPACK-7+1 corrugated box making machine. The drying system can use different color groups to dry the printed pattern with the method ...
    1. UV Coater Dryer
    2. UV Coater Dryer The UV coater dryer aims to dry the printed paperboard to avoid scratches or mackle problems in the procedure of transfer, slotting or die cutting.
    1. Die Cutter
    2. Die Cutter The die cutter adopts independent servo drive (US Emerson), so the die cutting is high-precision. Besides it can avoid the printing ghost and ink generated by the shock in the printing process.
    1. Central Control Panel
    2. Central Control Panel The central control panel implements a remote control to the corrugated box making machine without entering the data into various parts, which is convenient and saves a lot of time.
    1. Sheet Feeder
    2. Sheet Feeder The sheet feeder adopts the servo drive to make the feed roller rotates and the cardboard is transported to the corrugated box printer for printing.

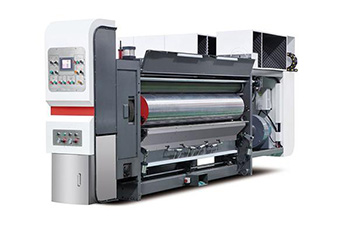

    1. Corrugated Box Printer
    2. Corrugated Box Printer The corrugated box printer adopts special double scraper structure to increase the quantity of ink and control the uniformity. The colloid is covered with PTFE...

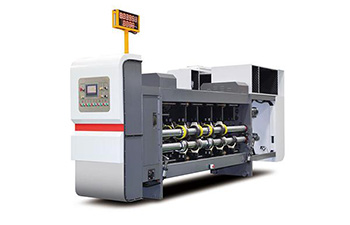

    1. Corrugated Box Slotter
    2. Corrugated Box Slotter The corrugated box slotter can choose to use single-shaft and single-knife or use double-shaft and double-knife to slot. The knifes before and after are powered by ...

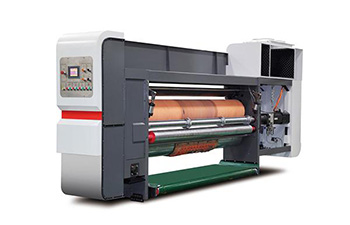

    1. Die Cutter
    2. Die Cutter The die cutter mainly uses the wooden mold to carry on the irregular die cutting to the carton, which makes the shape meets the customer's request.
    1. Central Control Panel
    2. Central Control Panel The central control panel carrys out a remote control to the corrugated box making machine without entering the data into various parts...
    1. Sheet Feeder
    2. Sheet Feeder The adsorption fan can auxiliarily locate leading edge and the sheet feeder can automatically feed sheet and the transmission is high precision.
    1. Corrugated Box Printer
    2. Corrugated Box Printer The corrugated box printer is equipped with quick printing plate mounting system, which is convenient to load and unload the printing plate.
    1. Corrugated Box Slotter
    2. Corrugated Box Slotter The slotter is equipped with a flexible angle cutter and there is no need to adjust no matter the cardboard is three or five or seven layers.

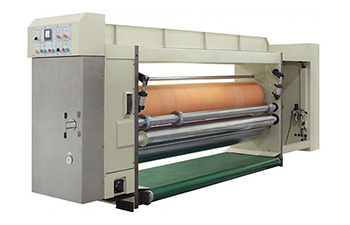

    1. Die Cutter
    2. Die Cutter The die cutter mainly uses the wooden mold to carry on the irregular die cutting to the carton, which makes the shape meet the customer's request.
    1. Sheet Feeder
    2. Sheet Feeder The sheet feeder is equipped with automatic dust removal mechanism, which can effectively remove the impurities on the surface of cardboard.
    1. Corrugated Box Printer
    2. Corrugated Box Printer The corrugated box printer adopts quick printing plate mounting system, which is easy to assemble and disassemble the printing plate.
    1. Corrugated Box Slotter
    2. Corrugated Box Slotter The slotter is equipped with a flexible angle cutter and there is no need to adjust no matter the cardboard is three or five or seven layers.
    1. Die Cutter
    2. Die Cutter The material of the die cutting roller is high quality steel, whose wall thickness is 30mm and uses balance correction, and the surface is hard chrome plated.

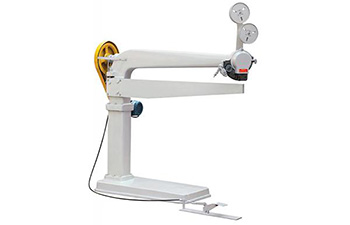

    1. Carton Stitcher
    2. Carton Stitcher The carton stitcher is equpped with dual servo system andtouch screen. The PLC system is from Mitsubishi, Japan. The carton stitcher is suitable for nailing all kinds of corrugated box machine...

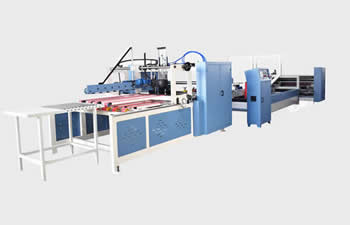

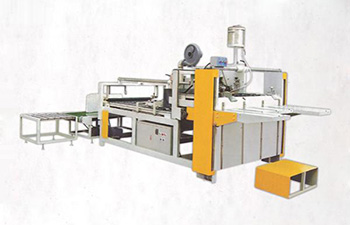

    1. Semi-Automatic Carton Gluer
    2. Semi-Automatic Carton Gluer The carton gluer has the function of automatic counting, the finished products (1-99 sheets) can be set according to the number to convey to the terminal of the conveyor for easy bundling.

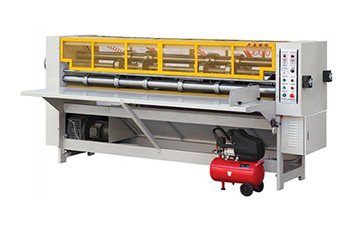

    1. Blade Slitter Scorer
    2. Blade Slitter Scorer The blade slitter scorer features the process sequences such as sheet feeding, slitting, prepressing and creasing, and equipped with the lower paper roller, it can thus adapt to a variety of carton's demands of slitting and creasing.

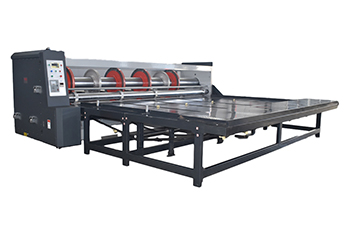

    1. Rotary Slotting and Corner Cutting Machine
    2. Rotary Slotting and Corner Cutting Machine The rotary slotting and corner cutting machine can be used to trim, crease, slot and corner cut. If need, the machine can also add equipment for boring air vents and hand holes of the carton.

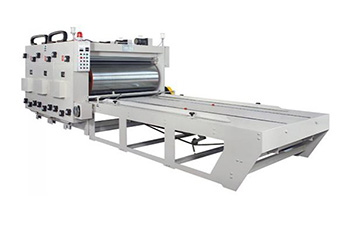

    1. Rotary Drum Flexographic Printing Machine
    2. Rotary Drum Flexographic Printing Machine The rotary drum flexographic printing machine uses flat-type electric fine-tuning structure to achieve fast and precise adjustment, running or stopping can be 360 degrees positive and negative phase ...

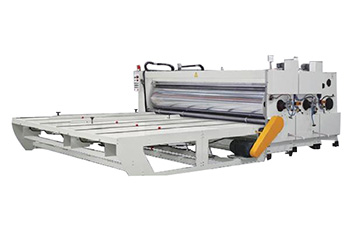

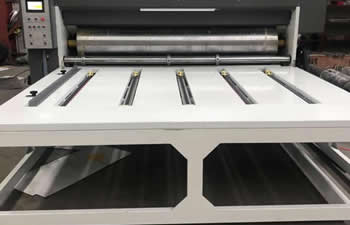

    1. Semi-Automatic Printer Slotter Machine
    2. Semi-Automatic Printer Slotter Machine The 4 sets of slotting knife could be adjusted simultaneously, which decreases the time of adjusting machine to applicable for different cartons and increases productivity.

As corrugated board made by corrugated sheet and cardboard, has high strength used as packaging material, Jiufeng here provide complete corrugated box making machine lines with automatic functions of printing, drying, slotting, die cutting and gluing. Since 1996 many years in manufacturing corrugated box equipment, also there are printer slotter machine, slitter scorer, stitching machine applied for carton cutting, carton stitching and carton color printing purpose.
