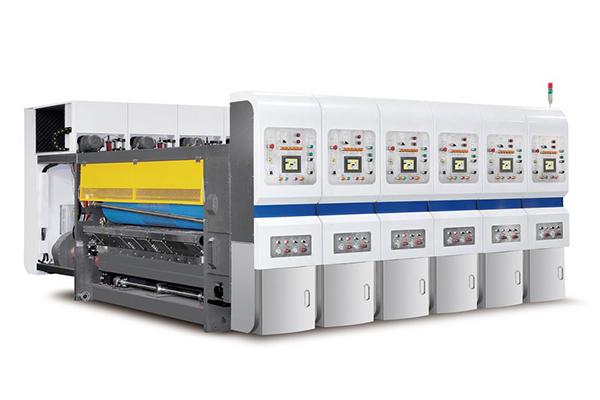

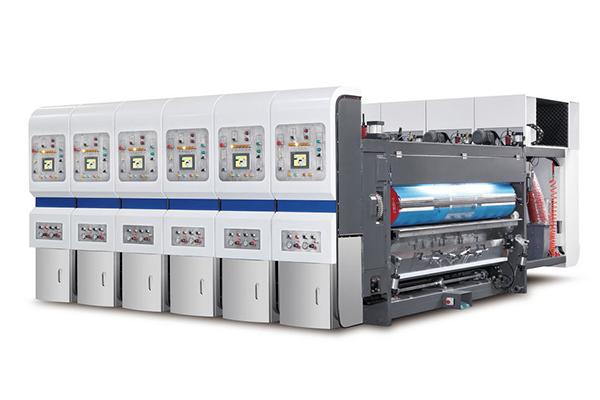

Flexo Printer

When the paperboard arrives the flexo printer, the scraper system spreads the ink on the rubber roller uniformly. Then the rubber rollers transmit the ink to the forme on the printing rollers and the paperboard is transmitted stably by vacuum adsorption, finally the pattern is accurately printed on the paperboard.

• The drying system can use different color groups to dry the printed pattern with the method of infrared single-group drying.
• The vacuum transmission box uses the method of segmented feeding. Meanwhile, the bottom printing shafts and the suction wheels are transmitted by ceramic wheels. The bottom printing shaft is the same structure as the suction wheel, but this wheel is an axis. Segmented feeding: a bellows is divided into five columns. If it is small cardboard, probably three columns of air door are opened, the top side of the 2 doors will be closed, so that the wind will be concentrated. If it is large cardboard, all air doors will be opened.
• The slight pressure regulating vacuum box and the ink printing pressure are adjusted by using European special high-rate piston type to avoid mackle problems. Ink printing pressure: printing pressure
• The corrugated box making machine can automatically washing ink with fast speed in a cycle(3 minutes) and it has ink lacking alarming device with the technology of ink lacking alarming.Quick washing ink is convenient for cleaning the ink on the rollers after you using the machine.
• The corrugated box making machine has ink leakage alarm system to avoid ink waste.

Jiufeng company offers corrugated carton making equipment, as a full experienced corrugated sheet flexographic printer manufacturer, we provide complete corrugated cardboard box machine line, including corrugated cardboard printer, cardboard cutter, cardboard folder and gluer. The corrugated cardboard machines we made with plenty of experience since 1996, we are sure to offer customers high quality corrugated carton equipment and corrugated cardboard solutions in customer needs.
