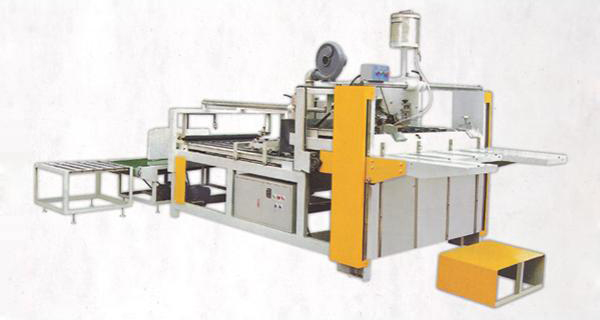

Semi-Automatic Carton Gluer

Semi-Automatic Carton Gluer
Features
  • The carton gluer has the function of automatic counting, the finished products (1-99 sheets) can be set according to the number to convey to the terminal of the conveyor for easy bundling.
  • The drying function of fan can speed up the carton bonding and reduce the production of unqualified products.
  • From the semi-finished products bonded to the finished product placed neatly, only two workers are needed, which is easy and convenient.
  • The cardboard is slapped in good order before putting into the machine, it can avoid the circumstances that if the cardboard is not aligned.
Parameters
Model BF-2460
Max size(Length plus width)(mm) 2460
Min size(Length plus width)(mm ) 340
Max size(mm) 1515
Min size(mm) 260
Feeding height(mm) 900
Motor Power(kw) 4
Machine Length(mm) 5300
Machine Width(mm) 2470
Machine Weight(kg) 2150
Machine Speed(m/min) 60
Dimensions(mm) 4255*1930*1780

Besides the corrugated carton making equipment, Jiufeng company also provide carton gluer for carton machines, and as we provide complete corrugated cardboard box machine line, including corrugated cardboard printer, cardboard cutter, cardboard folder and gluer with plenty of experience since 1996, we are sure to offer customers high quality corrugated carton equipment and corrugated cardboard solutions for customers.
